DEBAMED® Flexible Bio-Box
DEBAMED® Flexible Bio-Box is a kit consisting of secondary packaging (a bag) and outer packaging (a box). It is suitable for transporting category A and B samples of biological substances, including under temperature-controlled conditions. Certified in compliance with packaging instructions P650 (UN3373) and P620 (UN2814 or UN2900). The rigid part of the Bio-Box complies with regulations for the carriage of dangerous goods, and is approved by the New Zealand’s civil and aviation authorities as compliant with ADR and IATA standards. As such, the product can be used for carriage by air, and the secondary packaging can withstand pressure of up to 95 kPa.
Product characteristics
- Quick and easy to use
- No additional packaging required
- Outer packaging consists of a box with integrated closure system
- Secondary packaging consists of a sturdy, leakproof bag which can withstand differences in air pressure of up to 95 kPa / 14 psi
- Air-bubble bag with adhesive closure for guaranteed shock resistance
- Absorbent intermediate layer
- The kit includes two labels – for class 6.2 infectious substances and for UN3373 infectious substances; these can be attached as appropriate to the outer packaging
Standard range
A4 Size-25 pcs per box
Item no.: 817H0000002
- Dimensions of outer packaging: 265 x 185 x 70 mm
- Dimensions of secondary packaging:
Interior dimensions – 235 x 260 mm
Exterior dimensions – 261 x 372 mm
Opening – 200 mm
A3 Size-25 pcs per box
Item no.: 817H0000003
- Dimensions of outer packaging: 375 x 240 x 105 mm
- Dimensions of secondary packaging:
Interior dimensions – 310 x 335 mm
Exterior dimensions – 333 x 444 mm
Opening – 245 mm
Print on standard range
- “4GU” = cardboard packaging code
- “CLASS 6.2” = infectious substance class 6.2
- “20” = year of production z. B. “20” für 2020
- “NZ” = country code (New Zealand)
- “CAA” = certifiying organization code (Civil Aviation Authority)
- “43582-28” = number of the test report
Country of origin
- New Zealand

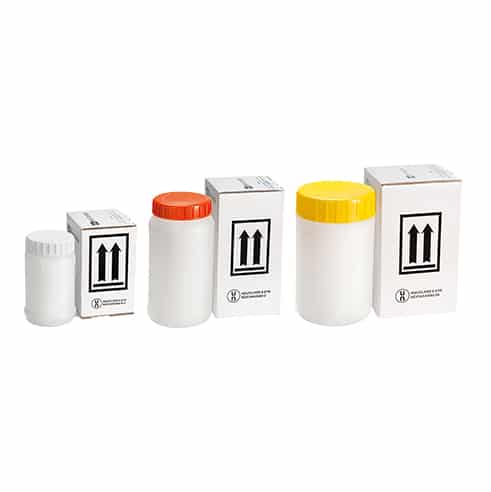

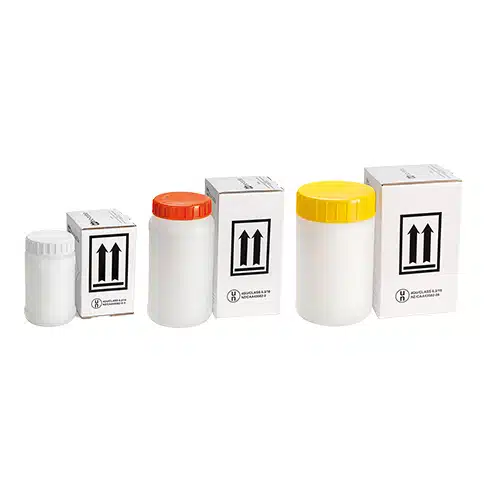

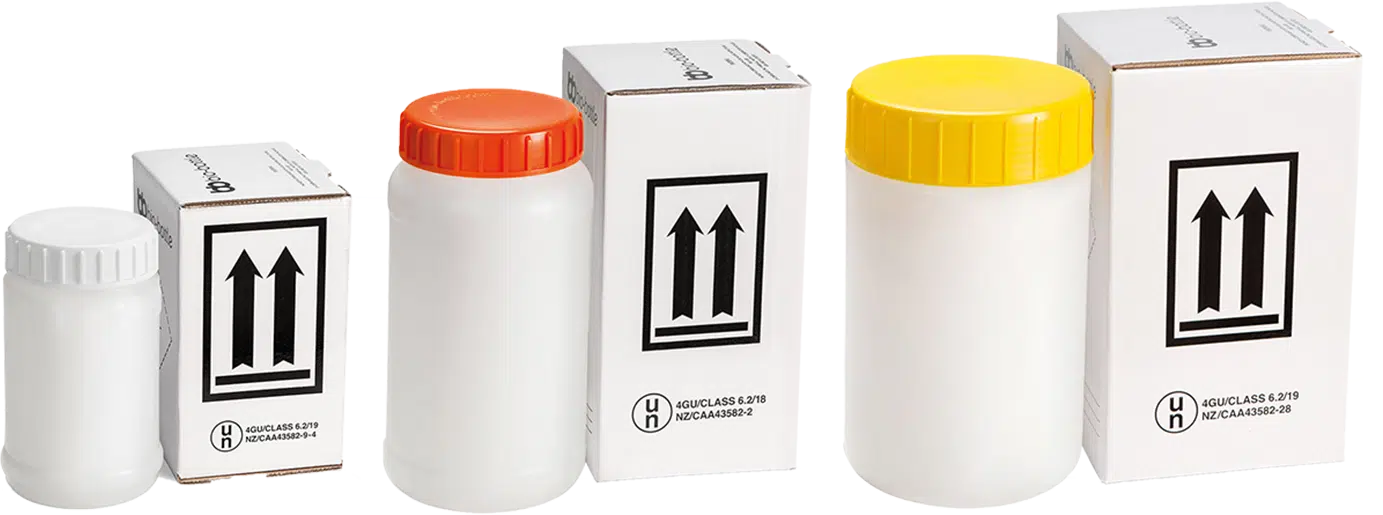

DEBAMED® Rigid Bio-Box
DEBAMED® Rigid Bio-Box is a kit consisting of secondary packaging (a container) and outer packaging (a box). It is suitable for transporting samples of category A and B biological substances, including under temperature-controlled conditions. The product is certified in compliance with packaging instructions P650 (UN3373) and P620 (UN2814 or UN2900). The rigid part of the Bio-Box complies with regulations for the carriage of dangerous goods, and is approved by New Zealand’s civil and aviation authorities as compliant with ADR and IATA standards. As such, the product can be used for carriage by air (95 kPa).
Product characteristics
- Outer packaging consists of a cardboard box with integrated closure system
- Sturdy, leakproof container made of rigid plastic, can withstand internal pressure of 95 kPa / 14 psi
- Air-bubble bag with adhesive closure for guaranteed shock resistance
- Absorbent material
- The kit includes two labels – for class 6.2 infectious substances and for UN3373 infectious substances; these can be attached as appropriate to the outer packaging
Standard range
Rigid Bio-Box white/blue or white lid – 0,85 l
Item no.: 818H0000002
- Dimensions of outer packaging: 175 x 110 x 110 mm
- Dimensions of secondary packaging:
Opening: 70 mm
Diameter: 95 mm
Height: 165 mm - Weight of container: 0,14 kg
- Total weight: 0,22 kg
Rigid Bio-Box white/orange lid – 2,0 l
Item no.: 818H0000003
- Dimensions of outer packaging: 123 x 123 x 245 mm
- Dimensions of secondary packaging:
Opening: 80 mm
Diameter: 120 mm
Height: 230 mm - Weight of Container: 0,24 kg
- Total Weight: 0,32 kg
Print on standard range
- “4GU” = cardboard packaging code
- “CLASS 6.2” = infectious substance class 6.2
- “20” = year of production z. B. “20” für 2020
- “NZ” = country code (New-Zealand)
- “CAA” = certifiying organization code (Civil Aviation Authority)
- “43582-28” = number of the test report
Closure / opening
- Leakproof lid
- Container is easy to open and close
Country of Orgin
- New Zealand

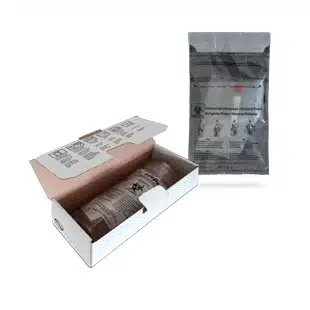

DEBAMED® D-PAK
DEBAMED® D-PAK is a kit consisting of secondary packaging (a bag) and outer packaging (a box). It is used for transporting category B (UN3373) samples of biological substances in compliance with the international and European Guidance on regulations for the transport of infectious substances (ADR – IATA – WHO). The D-Pak is suitable for sending samples at room temperature or for cold chain deliveries (chilled or frozen).
Product characteristics
- Suitable for sending samples at room temperature, or for cold chain deliveries (chilled or frozen) thanks to a 20 mm isothermal polystyrene layer.
- No reverse logistics
- Outer packaging consists of a box with integrated closure system
- Flexible secondary packaging with integrated absorber: leakproof bag is capable of withstanding an internal pressure of 95kPa
- Additional leakproof bag which prevents fluids from leaking during transport if primary containers are not watertight (e. g., petri dishes etc.)
- Air-bubble bag with adhesive closure for guaranteed shock resistance
- Complies with packaging instruction P650 for class 6.2
Standard range
Room temperature:
Item no.: 821H0000002
- Quantity: 50 pcs per box
- Dimensions of outer packaging: 290 x 110 x 110 mm
- Dimensions of secondary packaging (Speci-Bag 95kPa): 175 x 295 mm (Opening 145 mm)
- Miscellaneous: Absorber 50 ml or absorber 5 compartments 100 ml
Cooled:
- Quantity: 18 pcs per box
- Dimensions of outer packaging: 250 x 190 x 190 mm
- Dimensions of secondary packaging (Speci-Bag 95kPa): 175 x 295 mm (Opening 145 mm)
- Miscellaneous: Absorber 50 ml
Deep-frozen/Frozen:
- Quantity: 18 pcs per box
- Dimensions of outer packaging: 410 x 190 x 190 mm
- Dimensions of secondary packaging (Speci-Bag 95kPa): 175 x 295 mm (Opening 145mm)
- Miscellaneous: Absorber 50 ml
Print on standard range
Outer packaging (Box)
- UN3373 Logo
- MATIÈRE BIOLOGIQUE CATEGORIE B/BIOLOGICAL SUBSTANCE CATEGORY B/BIOLOGISCHER STOFF KATEGORIE B
- Schreibfelder Absender/Empfänger
Secondary packaging (Bag)
- Biohazard logo
- Instructions

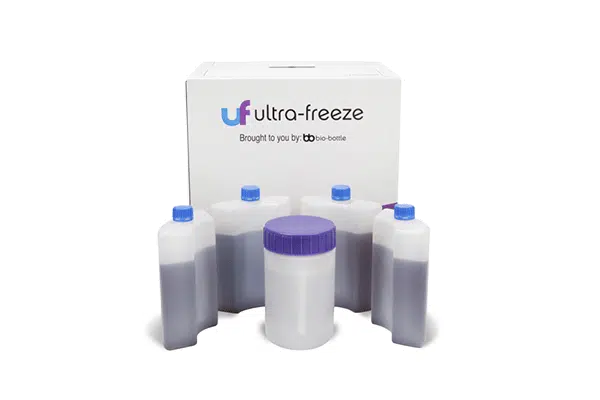

DEBAMED® Ultra-Freeze
DEBAMED® Ultra-Freeze is a kit consisting of secondary packaging (a container) and outer packaging (a box). It is suitable for transporting samples of category A and B biological substances, including under temperature-controlled conditions and for journeys of long duration. Because the product does not use dry ice for the cooling process, it is not classified as hazardous for aviation purposes. This helps to cut costs considerably.
Product characteristics
- Outer packaging consists of a cardboard box with integrated closure system
- Sturdy, leakproof container made of rigid plastic, can withstand internal pressure of 95 kPa / 14 psi
- Air-bubble bag with adhesive closure for guaranteed shock resistance
- Absorbent material
- The kit includes two labels – for class 6.2 infectious substances and for UN3373 infectious substances; these can be attached as appropriate to the outer packaging
Standard range
Ultra-Freeze – 3 l
Item no.: 819H0000003
- Dimensions of outer packaging: 500 x 500 x 500 mm
- Dimensions of secondary packaging:
Height: 245 mm
Duiameter: 150 mm
Opening: 110 mm - Weight of container: 0,38 kg
- Total weight: 14,40 kg
- Temperature range: -80 °C bis -20 °C for a duration of 72 h, below 0 °C for more than 100 h.
Ultra-Freeze MAX – 1 l
Item no.: 819H0000004
- Dimensions of outer packaging: 500 x 500 x 500 mm
- Dimensions of secondary packaging:
Height: 245 mm
Diameter: 150 mm
Opening: 110 mm, decreasing to 75 mm (usable size) - Weight of container: 2,04 kg
- Total weight: 16,06 kg
- Temperature range: -80 °C bis -20 °C for a duration of 96 h, unter 0 °C for a duration of more than 120 h.
Ultra-Freeze PLUS – 3 l
Item no.: 819H0000005
- Dimensions of outer packaging: 500 x 500 x 500 mm
- Dimensions of secondary packaging:
Height: 245 mm
Diameter: 150 mm
Opening: 110 mm - Weight of container: 0,38 kg
- Total weight: 14,40 kg
- Temperature range: under 0 °C for a duration of more than 168 h.
Print on standard range
- “4GU” = cardboard packaging code
- “CLASS 6.2” = infectious substance class 6.2
- “20” = year of production z. B. “20” für 2020
- “NZ” = country code (New-Zealand)
- “CAA” = certifiying organization code (Civil Aviation Authority)
- “43582-28” = number of the test report
Closure/opening
- Leakproof lid
- Container is easy to open and close
Country of origin
- New Zealand

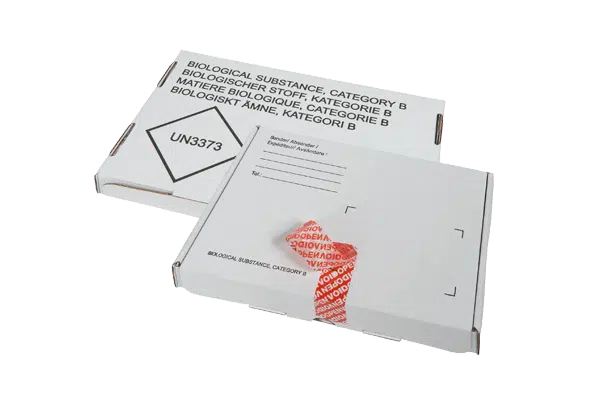

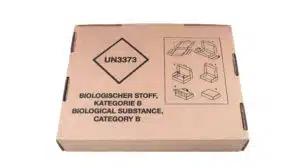

DEBAMED® Postal-Pak
DEBAMED® Postal-Pak is a kit for sample tubes, consisting of secondary packaging (a bag) and outer packaging (a box). It is used for transporting category B (UN3373) samples of biological substances in compliance with the international and European Guidance on regulations for the transport of infectious substances (ADR – IATA – WHO). Suitable for sending samples at room temperature.
Product characteristics
- Suitable for sending sample tubes at room temperature
- Fits through a letterbox
- No reverse logistics
- Outer packaging consists of a cardboard box with integrated closure system
- Flexible secondary packaging with integrated absorber: leakproof bag capable of withstanding an internal pressure of 95 kPa
- Air-bubble bag with adhesive closure for guaranteed shock resistance
- Complies with packaging instruction P650 for class 6.2
Standard range
Item no.: 821H0000002
- Quantity: 50 pcs per box
- Dimensions of outer packaging:
Exterior dimensions: 198 x 131 x 29 mm
Usable size: 190 x 128 x 25 mm - Dimensions of secondary packaging (Speci-Bag 95kPa): 175 x 195 mm (opening 145 mm)
- Micellaneous: Absorber 50 ml
Print on standard range
Outer packaging (Box)
- UN3373 Logo
- BIOLOGICAL SUBSTANCE, CATEGORY B
BIOLOGISCHER STOFF, KATEGORIE B
MATIERE BIOLOGIQUE, CATEGORIE B
BIOLOGISKT ÄMNE, KATEGORI B - Empty field for sender / recipient
Secondary packaging (95kPa Speci-Bag)
- Biohazard logo
- Instructions
DEBAMED® Bio-Freeze
DEBAMED® Bio-Freeze is a kit consisting of secondary packaging (a container) and outer packaging (a box). It is suitable for transporting category A and B samples of biological substances under temperature-controlled conditions. Due to integrated ice pack it can be used for longer transports. Because the product does not use dry ice for the cooling process, it is not classified as hazardous for aviation purposes. This helps to cut costs considerably.
Product characteristics
- Outer packaging consists of a box with integrated closure system
- Sturdy, leakproof container made of rigid plastic, can withstand internal pressure of 95 kPa / 14 psi
- Air-bubble bag with adhesive closure for guaranteed shock resistance
- Absorbent material
- Temperature range: guaranteed -15 °C to 0 °C for more than 48 hours
- The kit includes two labels – for class 6.2 infectious substances and for UN3373 infectious substances; these can be attached as appropriate to the outer packaging
Lagersortiment
Bio-Freeze – 1 l
Item no.: 819H0000002
- Dimensions of secondary packaging:
Height: 245 mm
Diameter: 150 mm
Opening: 110 mm, decreases to 75 mm (Usable space) - Dimensions of outer packaging: 330 × 255 × 255 mm
- Weight of container: 2,04 kg
- Total weight: 2,97 kg
Print on standard range
- “4GU” = cardboard packaging code
- “CLASS 6.2” = infectious substance class 6.2
- “20” = year of production z. B. “20” für 2020
- “NZ” = country code (New-Zealand)
- “CAA” = certifiying organization code (Civil Aviation Authority)
- “43582-28” = number of the test report
Closure/opening
- Leakproof lid
- Container is easy to open and close
Country of Origin
- New Zealand
